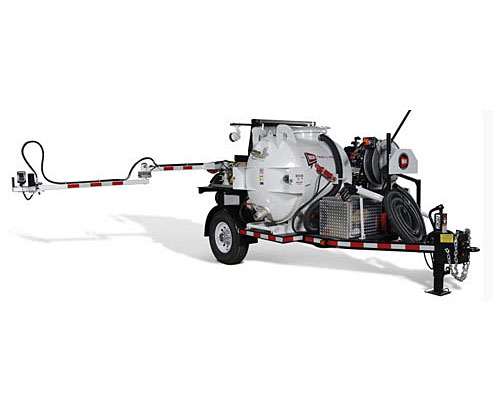

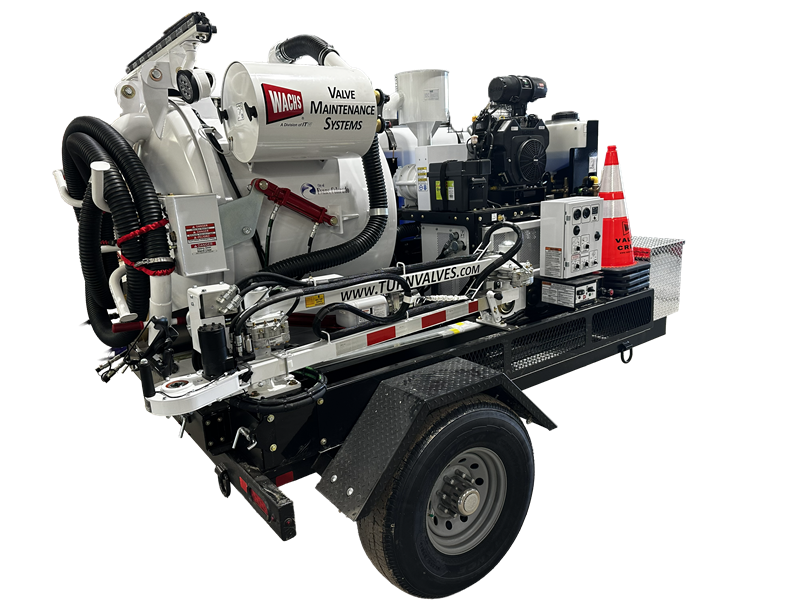

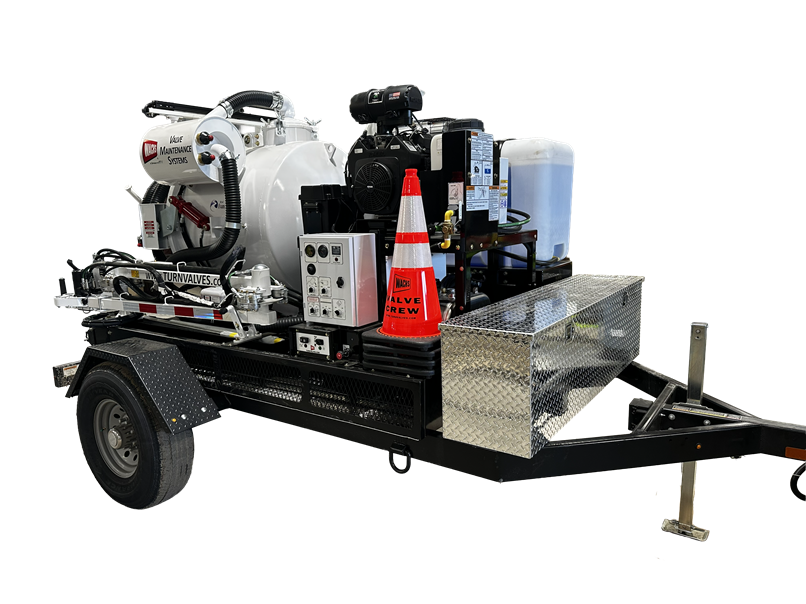

Grand LX Valve Maintenance Trailer VMT, Gas


As the industry leader in valve maintenance systems, Wachs Utility Products offers a wide range of equipment designed to perform recommended or mandated procedures. Wachs products can help track your valuable water infrastructure and keep it operating at peak efficiency. The pinnacle in trailer mounted valve maintenance systems is Wachs Grand LX, powered by diesel or gasoline engines.

Wachs Grand LX trailer includes two valve turning machines, our class leading ERV-750 extended reach operator and the powerful TM-7 for larger or stubborn valves, the latter available in Standard (1,500 ft/lbs) or Plus (2,500 ft/lbs) versions. The Grand LX sets the industry standard for a completely upgradeable, versatile platform designed to transport all the valve maintenance and vacuum tools needed in the field. Built to withstand the rigors of years of service, it’s the perfect solution for municipalities or contractors looking for a rugged, long lasting self-contained system.

Powered by a powerful Kohler 27 HP gasoline engine, the Grand LX comes complete with a wireless handheld controller with datalogger, a powerful 500 CFM-11in Hg vacuum, a 250 gal spoils tank utilizing Wachs exclusive hydraulic slide, tilt & discharge with a power latching door, here with a side discharge to make room for the TM-7 carriage at the rear.

 A 2.5 GPM@3000 psi pressure washer system with a 66 gallon water tank is standard, along with a powerful HPU with a HTMA Class II circuit, 10 gal reservoir, and a fan cooled heat exchanger, delivering up to 8 gpm @ 2000 psi. Loaded with storage and accessories, this trailer is ready to tackle the biggest jobs and your toughest valves. For organizations looking for a single valve turner trailer that does not require the grunt of our TM-7, Wachs Standard LX is a great choice.

Wachs Grand LX supports our industry exclusive VITALS software that uses “No Assumptions” logic in its programming. This class leading software, developed over the last three decades, has one goal in mind - to eliminate misdirection and over-torquing of valves during operation to prevent damaging or breaking them. Comprised of both mobile and desktop modules, VITALS allows you to set torque limits and record infrastructure details including location, valve-operating direction, and torque applied.

Grand LX Valve Maintenance Trailer VMT, Gas with twin valve turners includes:

  • Wachs 1,500 Ft/lb TM-7 operator (2,500 Ft/lb TM-7 HD Plus optional)
  • Wachs 750 Ft/lb Extended Reach Valve ERV-750 operator
  • Ruggedized handheld GPS controller/datalogger
  • 27 HP gasoline powered Kohler overhead cam air cooled engine provides ample power for all contained functions
  • Auxiliary HTMA Class II circuit (10 gallon reservoir, fan cooled heat exchanger, continuous duty rated for 8 GPM @ 1,800 PSI)
  • Positive displacement blower provides 500 CFM-11in Hg vacuum
  • Spoils containment provided by a 250 gallon tank with power hydraulic dump (curb side discharge) and latching rear door
  • 2.5 gpm @ 3000 psi pressure washer system
  • 7 gallon anti-freeze tank
  • 66 gallon water tank
  • 2-1/2in, 1-1/4in & 7/8in suction wands and one each short and long wash-down guns

The LX package bundle:

  • Light bar
  • Auxiliary hydraulic hose reel
  • Bluetooth tether
  • Job box
